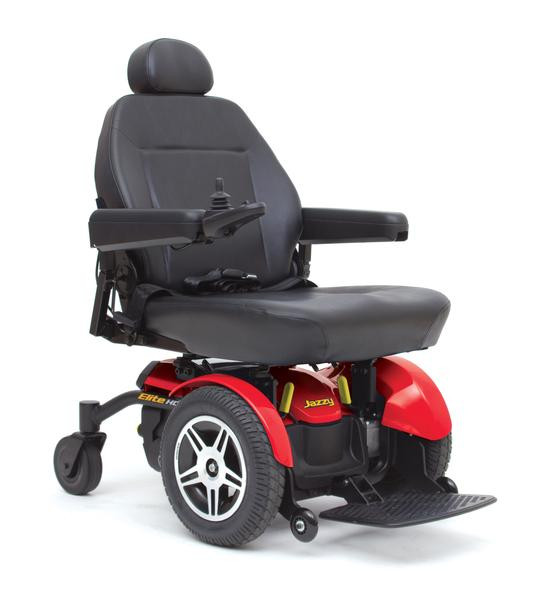

The Jazzy® Elite HD offers heavy-duty construction, a 450 lbs. weight capacity, and excellent performance in a stylish, highly maneuverable package.
Features:
Enhanced 450 lbs. weight capacity
Front-wheel drive design for excellent maneuverability
14" knobby tires and optimum weight distribution provide superior traction
Larger foot platform
60 amp controller
Extended 13-month limited warranty
Specifications:
| Model | Jazzy Elite HD |
| Weight Capacity | 450 lbs.* |
| Turning Radius | 24" |
| Width | 24.25" |
| Length | 35.5" |
| Maximum Speed* | Up to 4 mph |
| Ground Clearance | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" solid |
| Rear Wheels | 6" Solid casters |
| Drivetrain | Two-motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seating | 24"W x 24"D |
| High-Back Seat-to-Floor Range | 20" - 22" |
| Synergy Seating | 24"W x 24"D |
| Synergy Seat-to-Floor Range | 15.75" - 17.75" |
| Standard Electronics | 60A, Dynamic Shark |
| Battery Size | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range* | Up to 9.8 miles |
| Battery Weight | 37 lbs. each |
| Base Weight | 98.5 lbs. |
| Standard Seat Weight | 51.5 lbs. (high-back) |
| Standard Seat Size | 20" x 18"-20" |
| Medicare Code Coverage | Group 2: Heavy Duty (K0824/K0825) |
5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
