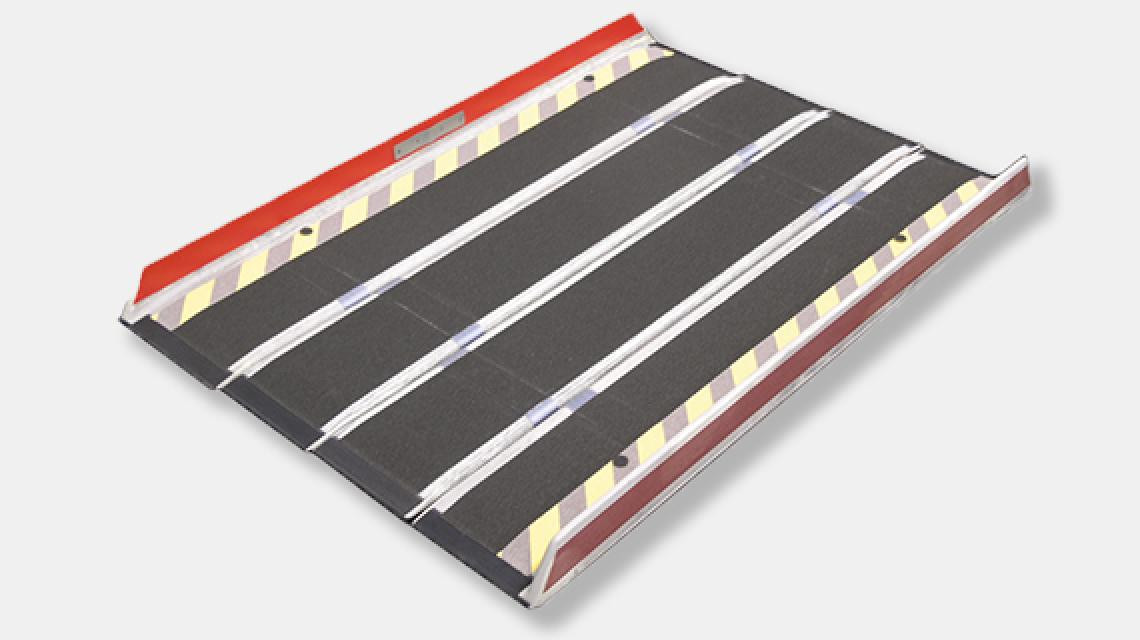

Edge Barrier Portable Ramp
The Edge Barrier Limiter (E.B.L) range has the added security of edge barriers. The Edge Barrier Portable Ramp is available in different lengths to provide solutions to obstacles from 22.5cm to 87.5cm in height. Particularly suited to providing instant access to homes, buses, trains and buildings where a permenant ramp is impractical.
Invacare Portable Ramps are manufactured with a unique combination of uni-directional glass and carbon fibre materials to create an extremely strong and lightweight ramp
Invacare Portable Ramps are designed to be carried as a single folded unit, enabling the ramp to be transported easily.
Invacare Portable Ramps are a multi-paneled design held together with a patented hinge system connected by webbing to allow the ramps to fold into a compact unit for easy vehicle or home storage. As compared to most other portable ramps on the market, which fold in halves, the Invacare Portable Ramp folds with a concertina action, allowing for a much smaller width when folded.
Invacare Portable Ramps require no assembly at all. They are supplied in a folded position, and are ready to use in a matter of seconds by laying the ramp out on the ground in which it is to be used.
All Invacare Portable Ramp models exhibit a high degree of capability to conform to differing surface angles whether it is a level building floor or an inclined sidewalk. This flexibility is made possible through Invacare Portable Ramp's multi-panel design and patented hinge system.
- Available in 9 sizes
- Safe working load 300kg
- Passes Australian Standards AS3856-1
EBL 090 22.5cm 75cm 6kg
EBL 120 30cm 82cm 9.7kg
EBL 135 33.75cm 82cm 11.1kg
EBL 150 37.5cm 82cm 11.8kg
EBL 165 41.2cm 82cm 13kg
EBL 200 50cm 82cm 13.7kg
EBL 250 62.5cm 82cm 23kg
EBL 300 75cm 82cm 27.3kg
EBL 350 87.5cm 82cm 31.5kg
